ALL TERRAIN VEHICLE

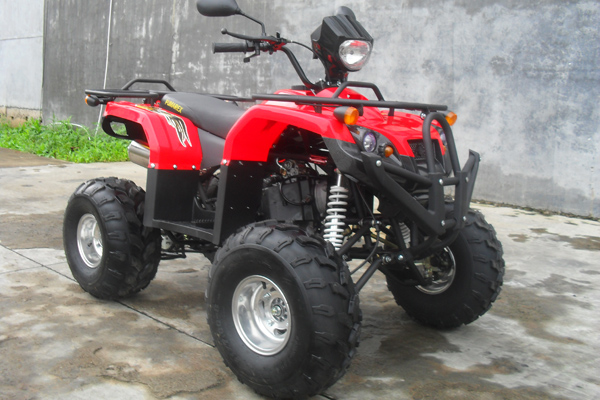

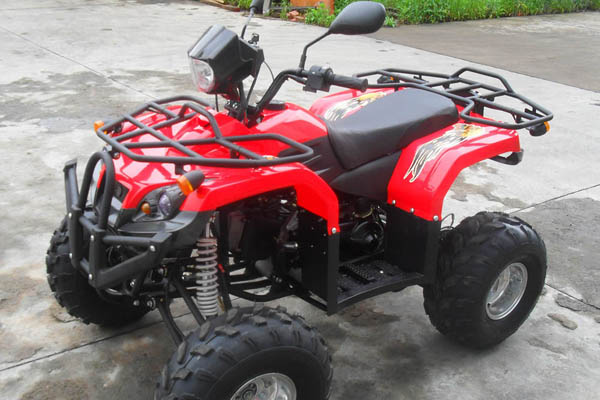

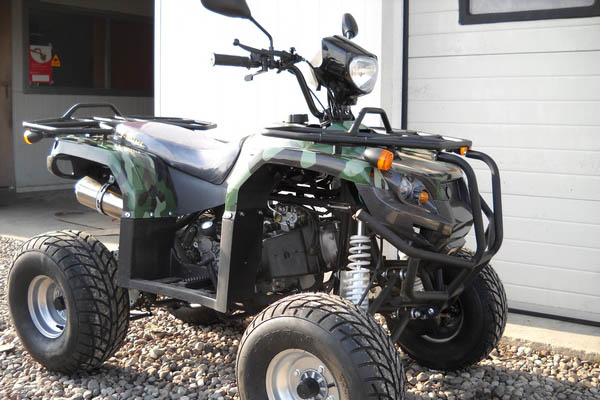

150CC FTW EEC
  • 150CC FTW EEC
  • Product Model: 150CC FTW EEC
  • Addtime: 2013-10-17
  • Clicks:
  • ../uploadfile/20131017/20131017163845330.jpg
  • ../uploadfile/20131017/20131017163853591.jpg
  • ../uploadfile/20131017/20131017163902234.jpg
Product Description
ArtNo.150FTW  EEC


1.Engine type:1 Cylinder,4 stroke AUTO, GY 6 engine
2.Displacement:150 cc
3.Max power:6.0 kw/ 7500 rpm
4.Max torque:8.3 Nm/6000 rpm
5.Cooling:air cooled
6.Lubrication:pressure and splash
7.Ignition:CDI
8.Starting:Electic start
9.Final drive:chain drive
10.Transmission:C.V.T automatic With inside reverse, front suspension:double Aarm
11.Rear suspension:swing arm
12.Front brake:dual sealed drums/right hand operation
13.Rear brake:hydraulic disc / left hand operation parking:front/rear wheel
14.Front tire:AT21*7-8
15.Rear tire:AT 20*9.5-8
16.L*W*H:1660 * 1090 * 1060 mm
17.Seat height:810 mm
18.Wheel base:1090 mm
19.Turn radius:3000 mm
20.Ground clearance:120 mm
21.Dry weight:150 kgs
22.Max speed:64 km/ h
23.Tank capacity:5.0 L
24.Reserve amount:0.9 L
25.Loading quantity:18 pcs/20FT,63pcs/40HQ
26.Packing Size in CBU:1490*840*800 mm
